| TYPE | DESCRIPTION |
| Mfr | Vishay / Siliconix |
| Series | TrenchFET® |
| Package | Tape & Reel (TR) |
| Product Status | ACTIVE |

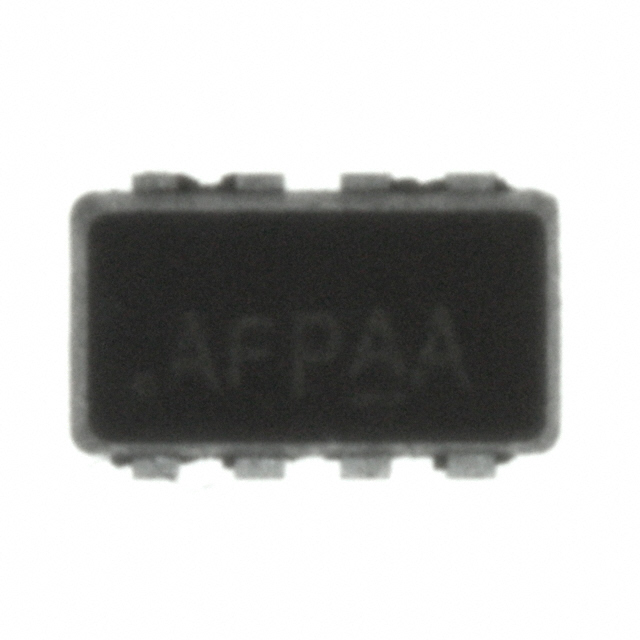

| Package / Case | 8-SMD, Flat Leads |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 6A (Tc) |
| Rds On (Max) @ Id, Vgs | 24mOhm @ 4.8A, 10V |
| Power Dissipation (Max) | 2.5W (Ta), 6.25W (Tc) |
| Vgs(th) (Max) @ Id | 2.3V @ 250µA |
| Supplier Device Package | 1206-8 ChipFET™ |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±25V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 32 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 950 pF @ 15 V |
